Events in Stedi Core

Stedi Core emits events as it detects and transforms files. You can consume these events and use them to automate your processing pipeline and perform custom actions. For example, you may want to write incoming X12 810 Invoices to your NetSuite account or generate an email alert when a file fails to validate.

Event topology

Events are split into three different levels, each representing a different level of granularity. Events are also categorized by their result states, representing success or failure during processing.

Event levels

  1. file: Events with information about a file Core has detected. File events contain summary information about the data type in the file, like X12 EDI, JSON, CSV, XML, etc.
  2. functional_group: Events with information about each Functional Group within an X12 EDI file.
  3. transaction: Events with information about a single transaction within an X12 EDI file.

Event categories

  1. processed: Events are emitted for each event level, but only when Core has processed the entire file successfully.
  2. failed: Events are only emitted at the file level because Core stops processing a file immediately when it finds an invalid transaction set.

When are events emitted?

Stedi emits events when it has fully completed processing a file.

When an entire file has been successfully processed

Consider an EDI file that contains two functional groups, and a total of three transaction sets. When Stedi successfully processes all transaction sets, it generates a total of six events:

  • 1x file.processed - indicating the entire file was processed successfully.
  • 2x functional_group.processed - one event for each group within the file.
  • 3x transaction.processed - one event for each transaction set found in both groups.

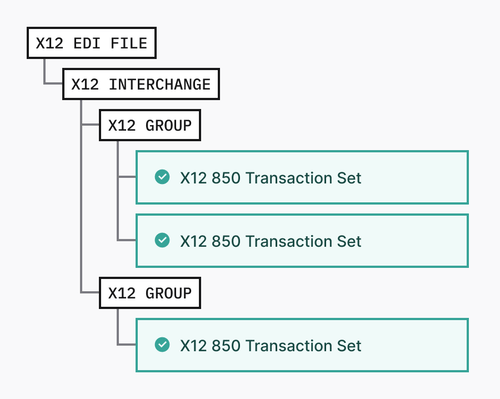

X12 File where all Transaction Sets are processed successfully

When at least one transaction fails to validate

If one or more transaction sets in a file fails validation, Stedi emits a single file.failed error, indicating that one or more transactions failed to process. Stedi cannot process the entire file until you address those issues.

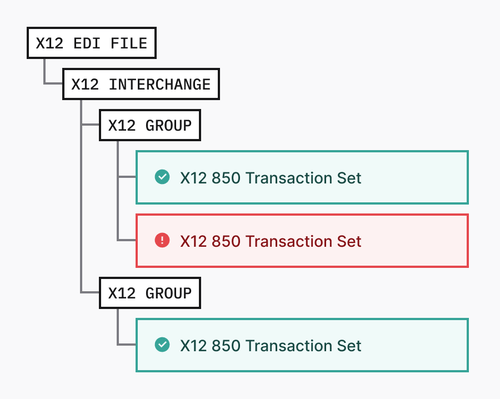

X12 File where one Transaction Set fails validation, blocking the entire file

Event structure

All events Stedi generates follow a standard JSON schema. The event payload itself never includes the contents of a given file or transaction. Instead, it references a Stedi bucket and provides a path to retrieve the entire object.
Event JSON Structure
{
  "version": "0",
  "id": "xxx-05d4-b198-2fde-7ededc63b103",
  "detail-type": "file.processed",
  "source": "stedi.core",
  "time": "2021-11-12T00:00:00Z",
  "detail": { ... }
}
In addition to their version, id, and time, events have the following fields:
  • detail-type - Indicates the type of event, such as transaction.processed or file.failed
  • source - Indicates the component that generated the event. All Core events use source: “stedi.core”.
  • detail - The event-specific JSON payload. The schema for each payload is determined by the detail-type.

Consuming events

You can use Stedi functions to consume events from Core. Functions let you run custom code without provisioning any infrastructure. You can subscribe to events using filters to select the exact subset of events you want to process. Your function can then use Javascript or Typescript code to process the data, integrating with your business systems as needed. For more information, visit Consuming events with Stedi Functions.

Available events

transaction.processed

The transaction.processed event is the primary integration point for building end-to-end EDI systems on Stedi. Stedi emits one transaction.processed event for every transaction successfully processed.
{
  "id": "xxx-05d4-b198-2fde-7ededc63b103",
  "detail-type": "transaction.processed",
  "source": "stedi.core",
  "time": "2021-11-12T00:00:00Z",
  "detail": {
    "version": "2023-02-13",
    "direction": "SENT",
    "envelopes": {
      "interchange": {
        "acknowledgmentRequestedCode": "0",
        "controlNumber": 1746,
        "date": "2022-09-14",
        "receiverId": "THISISME",
        "receiverQualifier": "ZZ",
        "senderId": "ANOTHERMERCH",
        "senderQualifier": "ZZ",
        "time": "20:22",
        "usageIndicatorCode": "T",
        "versionNumberCode": "00501"
      },
      "functionalGroup": {
        "applicationReceiverCode": "THISISME",
        "applicationSenderCode": "ANOTHERMERCH",
        "controlNumber": 1746,
        "date": "2022-09-14",
        "functionalIdentifierCode": "PR",
        "release": "005010",
        "responsibleAgencyCode": "X",
        "time": "20:22:22"
      }
    },
    "metadata": {
      "processedAt": "2023-03-14T19:19:17.950Z"
    },
    "transaction": {
      "id": "a542c152-87c5-4916-848d-e60d47fe0e34",
      "controlNumber": 1,
      "transactionSetIdentifier": "855",
      "ruleId": "some-uuid"
    },
    "input": {
      "type": "EDI/X12",
      "bucketName": "xxxxxxx-sftp",
      "key": "trading-partner/xxxx/xxxx.edi"
    },
    "output": {
      "type": "STEDI/GUIDE-JSON",
      "bucketName": "stedi-default-engine-artifacts-xxxxx",
      "key": "123ABC/1746-1746-1.json"
    },
    "partnership": {
      "partnershipId": "ThisIsMe-AnotherMerch",
      "sender": {
        "isa": {
          "qualifier": "ZZ",
          "id": "ANOTHERMERCH"
        },
        "profileId": "321"
      },
      "receiver": {
        "isa": {
          "qualifier": "ZZ",
          "id": "THISISME"
        },
        "profileId": "123"
      }
    }
  }
}

functional_group.processed

You may want to consume functional_group.processed events when generating 997 Functional Acknowledgments in response to incoming EDI files.
{
  "id": "xxx-05d4-b198-2fde-7ededc63b103",
  "detail-type": "functional_group.processed",
  "source": "stedi.core",
  "time": "2021-11-12T00:00:00Z",
  "detail": {
  "version": "2023-02-13",
    "direction": "RECEIVED",
    "envelopes": {
      "interchange": {
        "acknowledgmentRequestedCode": "0",
        "controlNumber": 1746,
        "date": "2022-09-14",
        "receiverId": "THISISME",
        "receiverQualifier": "ZZ",
        "senderId": "ANOTHERMERCH",
        "senderQualifier": "ZZ",
        "time": "20:22",
        "usageIndicatorCode": "T",
        "versionNumberCode": "00501"
      },
      "functionalGroup": {
        "applicationReceiverCode": "THISISME",
        "applicationSenderCode": "ANOTHERMERCH",
        "controlNumber": 1746,
        "date": "2022-09-14",
        "functionalIdentifierCode": "PR",
        "release": "005010",
        "responsibleAgencyCode": "X",
        "time": "20:22:22"
      }
    },
    "transactionSetCount": 1,
    "transactionSetIds": ["855","850"],
    "input": {
      "type": "EDI/X12",
      "bucketName": "chain-test",
      "key": "855.edi"
    },
    "partnership": {
      "partnershipId": "ThisIsMe-AnotherMerch",
      "sender": {
        "isa": {
          "qualifier": "ZZ",
          "id": "ANOTHERMERCH"
        },
        "profileId": "321"
      },
      "receiver": {
        "isa": {
          "qualifier": "ZZ",
          "id": "THISISME"
        },
        "profileId": "123"
      }
    }
  }
}

file.processed

You may want to consume file.processed events when you want to route non-EDI files that arrive on Stedi for additional processing.
{
  "id": "xxx-05d4-b198-2fde-7ededc63b103",
  "detail-type": "file.processed",
  "source": "stedi.core",
  "time": "2021-11-12T00:00:00Z",
  "detail": {
    "metadata": {
      "processedAt": "2023-03-14T19:19:17.950Z"
    },
    "source": {
      "type": "CSV",
      "bucketName": "test-bucket",
      "key": "123ABC/1746-1746-1.txt",
      "size": 4301
    }
  }
}

file.delivered

Core emits the file.delivered event every time a file is successfully delivered to a connection for an outbound transaction set. This event does not apply to inbound transactions.
{
  "id": "xxx-1234-b198-4321-7ededc63b103",
  "detail-type": "file.delivered",
  "source": "stedi.core",
  "time": "2021-11-12T00:00:00Z",
  "detail": {
    "version": "2023-02-13",
    "metadata": {
      "processedAt": "2023-03-14T19:19:17.950Z"
    },
    "source": {
      "type": "bucket",
      "bucketName": "xxxxxxx-sftp",
      "key": "trading-partner/xxxx/xxxx.edi"
    },
    "connection": {
      "connectionType": "BUCKET",
      "connectionId": "ff42c152-87c5-4916-848d-e60d47fe0e21",
    },
    "delivery": {
      "status": "DELIVERED",
      "message": "File was delivered to 'some-bucket/path/a-file.edi'",
      "artifactId": "c5d6835f-24c4-4bed-8c1b-7e199d6d0f39"
    }
  }
}

file.failed

Core emits file.failed events in two scenarios:
  • When a failure occurs while processing an inbound file. Core emits the file.failed event at the file level. If a single transaction set fails, the entire file fails.
  • When a Core cannot deliver an outbound file to a configured connection.
{
  "version": "0",
  "id": "xxx-05d4-b198-2fde-7ededc63b103",
  "detail-type": "file.failed",
  "source": "stedi.core",
  "time": "2021-11-12T00:00:00Z",
  "detail": {
    "version": "2023-02-13",
    "fileId": "123ABC",
    "direction": "RECEIVED",
    "envelopes": {
      "interchange": {
        "acknowledgmentRequestedCode": "0",
        "controlNumber": 1746,
        "date": "220914",
        "receiverId": "THISISME",
        "receiverQualifier": "ZZ",
        "senderId": "ANOTHERMERCH",
        "senderQualifier": "ZZ",
        "time": "2022",
        "usageIndicatorCode": "T",
        "versionNumberCode": "00501"
      }
    },
    "input": {
      "type": "EDI/X12",
      "bucketName": "test-bucket",
      "key": "855.edi"
    },
    "errors": [
      {
        "message": "some message here",
        "faultCode": "UNKNOWN_ERROR"
      }
    ]
  }
}
